The ARMADA is a hybrid VTOL platform, with internal cargo bay, that delivers the vertical agility of a rotary-wing system and the speed, range, and endurance of a fixed-wing aircraft in a single field-maintainable airframe. Its joined-wing embedded-rotor architecture integrates four large-diameter lift rotors directly within the wing structure, enabling vertical flight without the mechanical complexity of tilt wings, or tilt rotors.
Unmatched payload versatility
Simple to manufacture and deploy
Long endurance at increased speeds
The efficient propulsion arrangement and clean aerodynamics allow the Armada to haul payloads efficiently. Modular payloads can be carried in the internal bay or on wing hardpoints offering unmatched flexibility.
-
• VTOL
• Four dedicated lift rotors provide vertical thrust
• Differential thrust controls attitude
• Transition
• Drive rotors begin pushing the aircraft horizontally
• Lift transfers from rotors to wings
• Control shifts from thrust vectoring to aerodynamic surfaces
• Horizontal Flight
• Wings provide aerodynamic lift
• Lift rotors are de-energized and stowed aft to minimize drag
• Aircraft operates as a conventional fixed-wing platform
The key advantage of this configuration is mechanical simplicity. No pitching or rotation of components is require to transition from vertical to forward flight.
-
1
9:8:1 Wind-Tunnel L/D vs. ~4.1 helicopter2
12:1 CFD-Validated Design Variant3
Project Max Lift to Drag Ratio ~15:14
Horizontal Thrust to Weight 2:15
1.6 Disk Loading lbs/ft^26
Lift to Drag 12-17
Disk Loading -
The Armada is a Lift + Cruise configuration that utilizes a highly structurally efficient joined wing embedded rotor architecture. Large lift rotors allow for efficient hover while dedicated drive rotors allow for increased speed and efficient cruise.

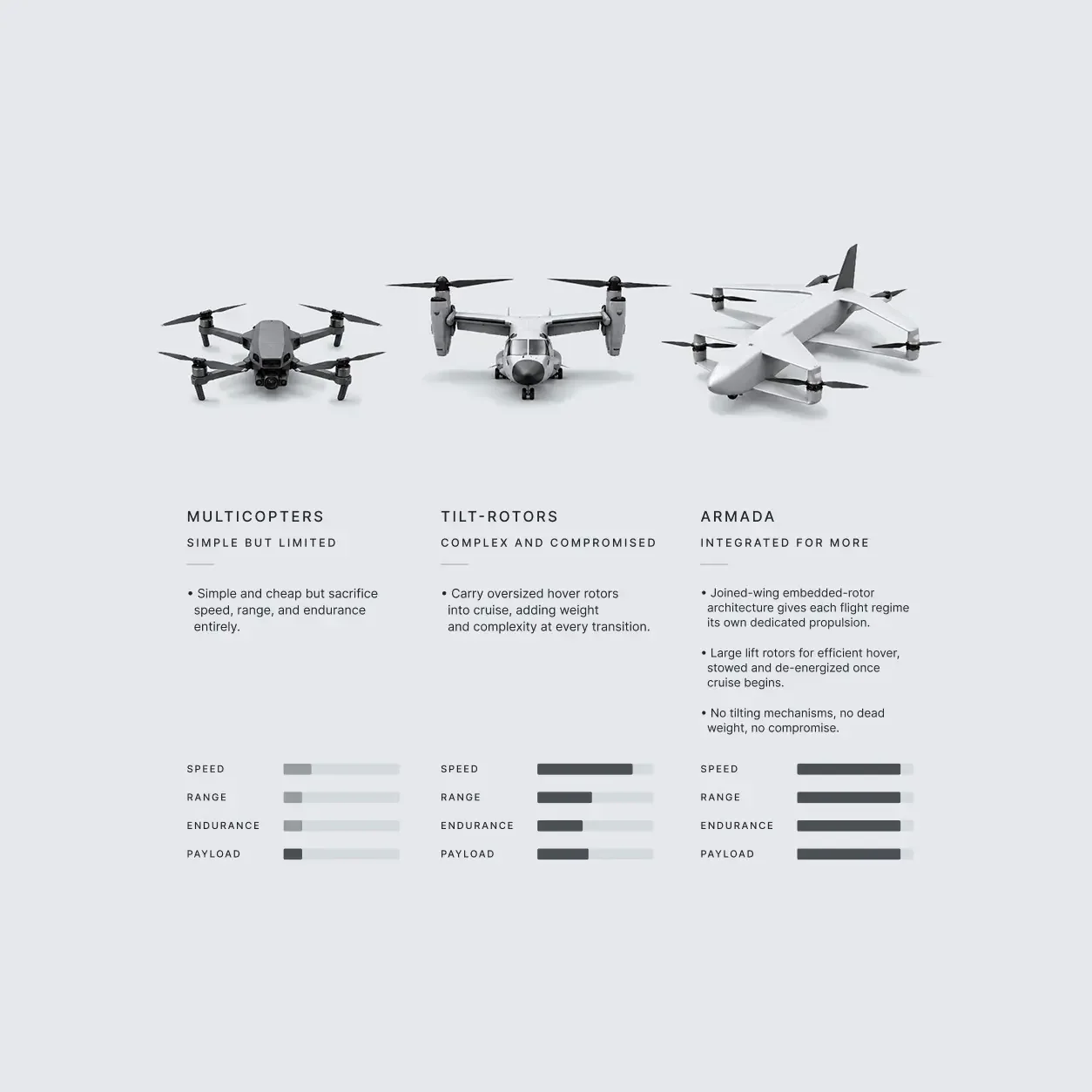

How is this better than other Lift + Cruise configurations (Elroy Air).

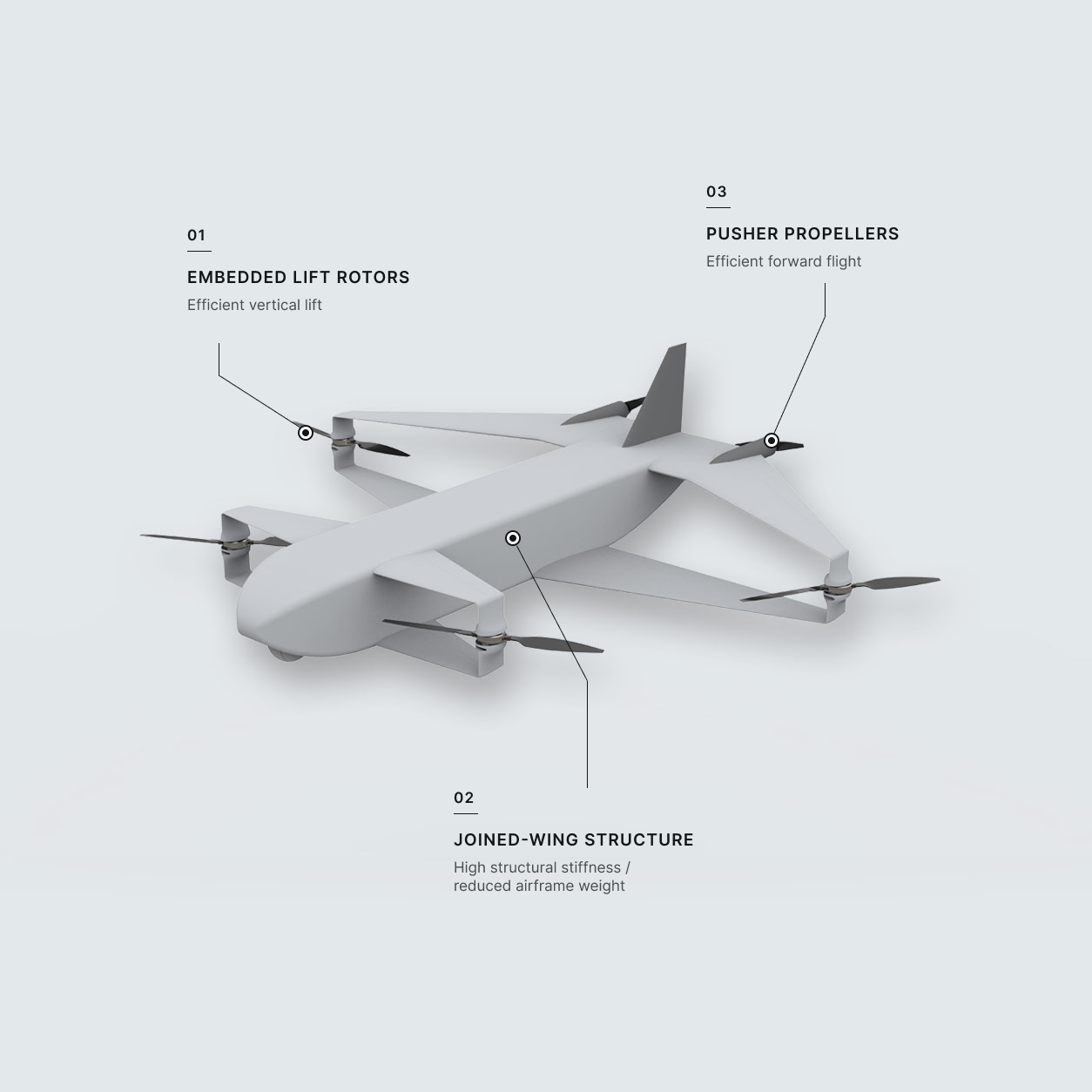

02 / ARTICLE• Large embedded lift rotors provide efficient vertical lift
• Joined wing arrangement provided high structural stiffness, reducing airframe weight
• Pusher propellers provide efficient and fast forward flight
Designed to be Simple
AN EVOLUTION IN VTOL AVIATION80 YEARS IN THE MAKING.03 / ARTICLEEnabling Technology
• Joined wing embedded motor provides high structural efficiency and stiffness in lifting surfaces

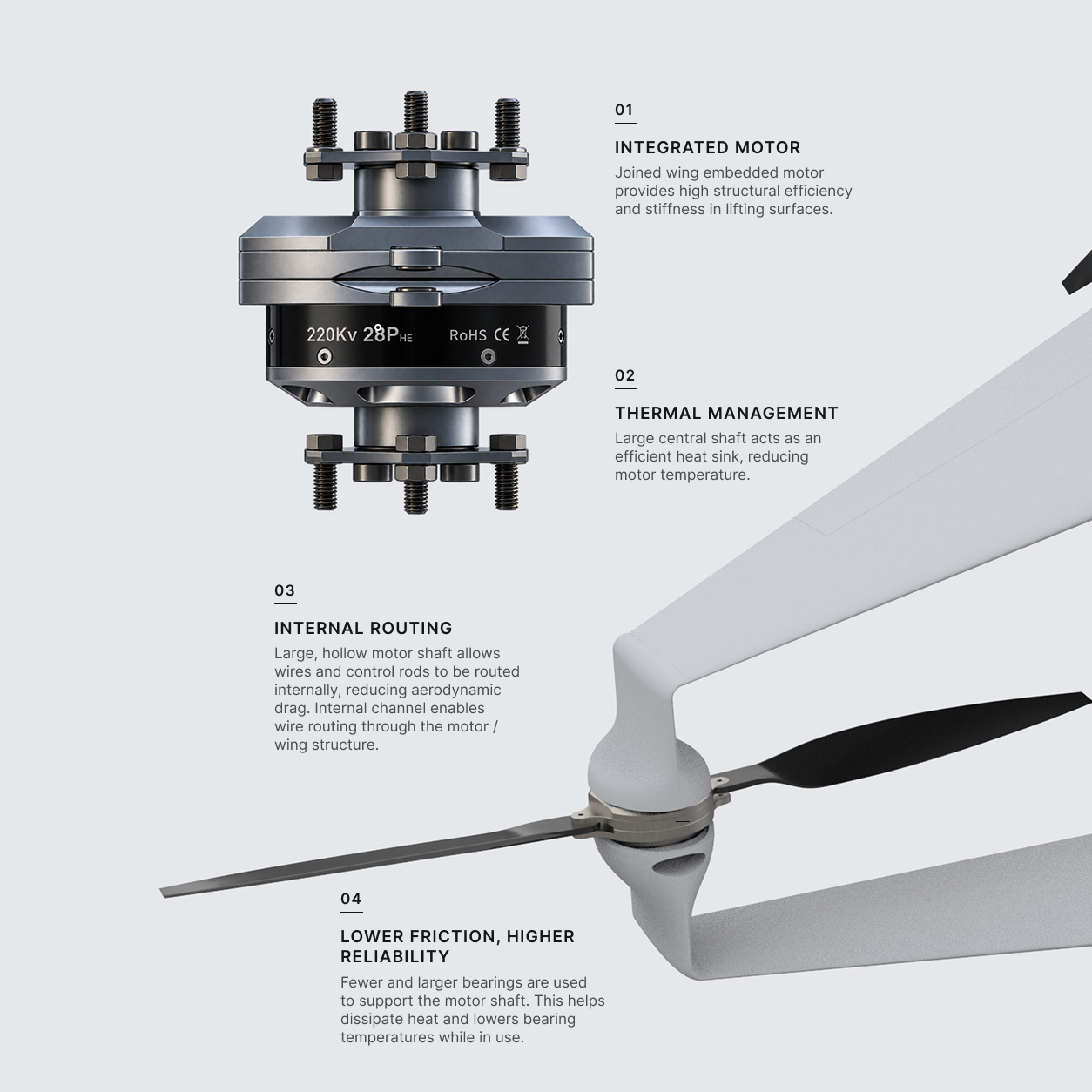

• The large, hollow motor shaft allows for wires and control rods to be routed internally, reducing aerodynamic drag• Internal channel enables wire routing through the motor / wing structure
• The large central shaft acts as an efficient heat sink, reducing motor temperature
• Fewer and larger bearings are used to support the motor shaft. This helps dissipate heat and lowers bearing temperatures while in use
Intriguing Headline Here
01 / Value Proposition
Explanation sentence for this feature.
02 / Value Proposition
Explanation sentence for this feature.
03 / Value Proposition
Explanation sentence for this feature.
04 / ARTICLEBuilt Around
the Mission

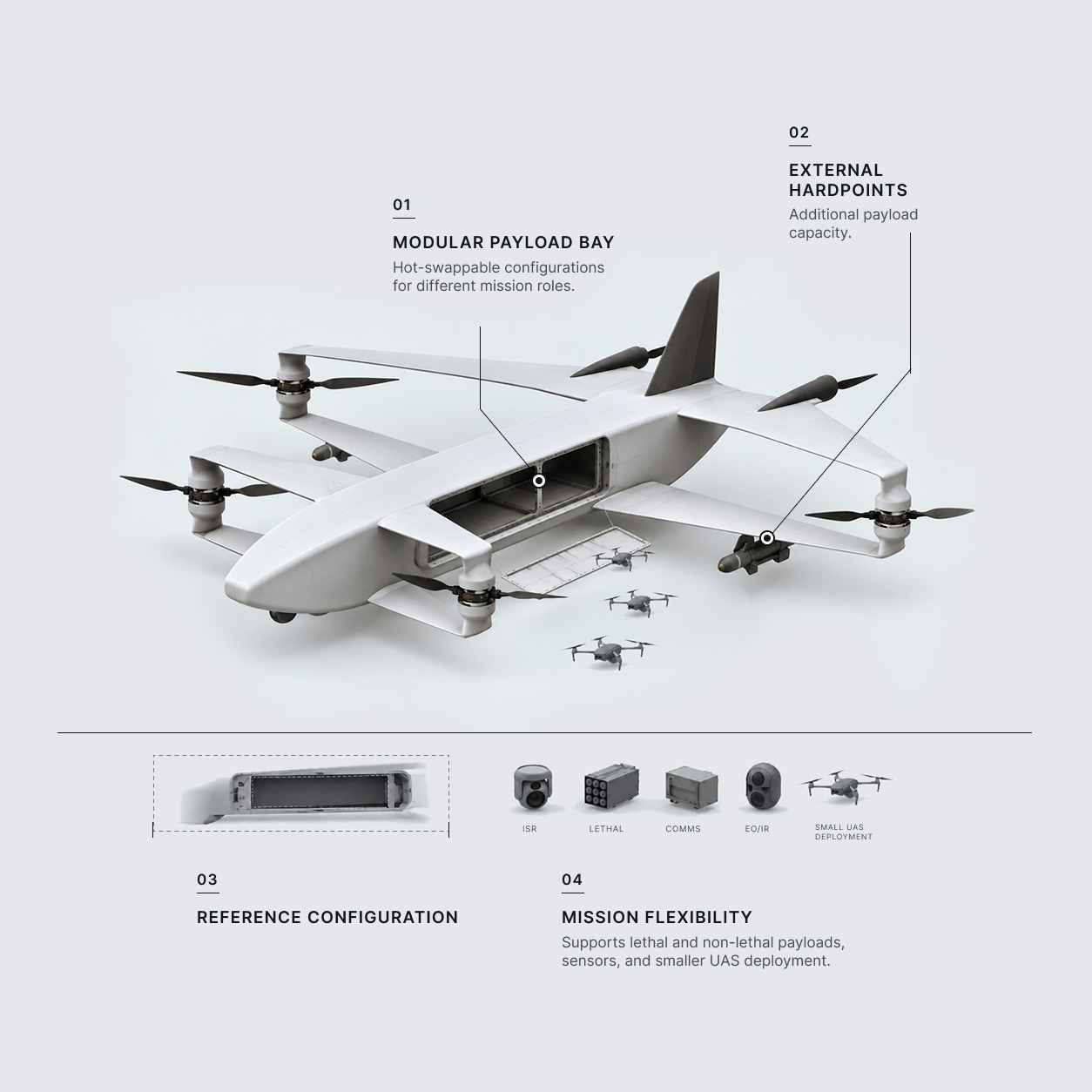

• Modular internal payload bay.
• External wing hardpoints for additional payload capacity.
• Referenced configuration: 18 lb maximum payload / 6 × 30 × 9 in internal bay.
• Hot-swappable bay configurations support different mission roles.
• Support for lethal and non-lethal mission payloads, sensors, and smaller UAS deployment.
05 / ARTICLEDesigned to Scale
• Common joined-wing embedded-rotor architecture translates across sizes.

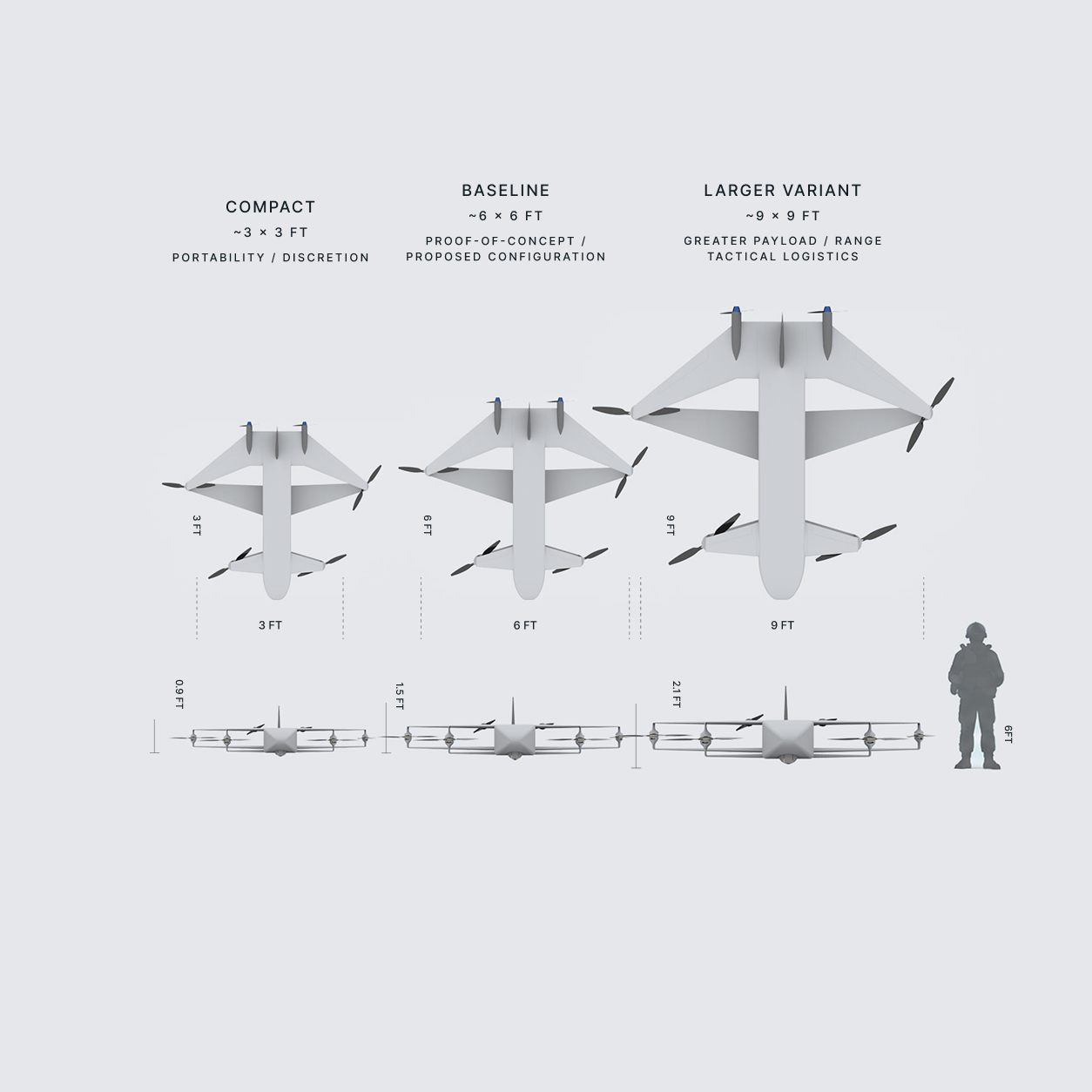

• Compact ~3 × 3 ft concept for portability / discretion.
